    Honda Engines GX200 Series General Purpose Straight Shaft Engine 200 ccm, 2 7/16 x 3/4, Dia. Taped 5/16 24 UNF GX200UTQX2

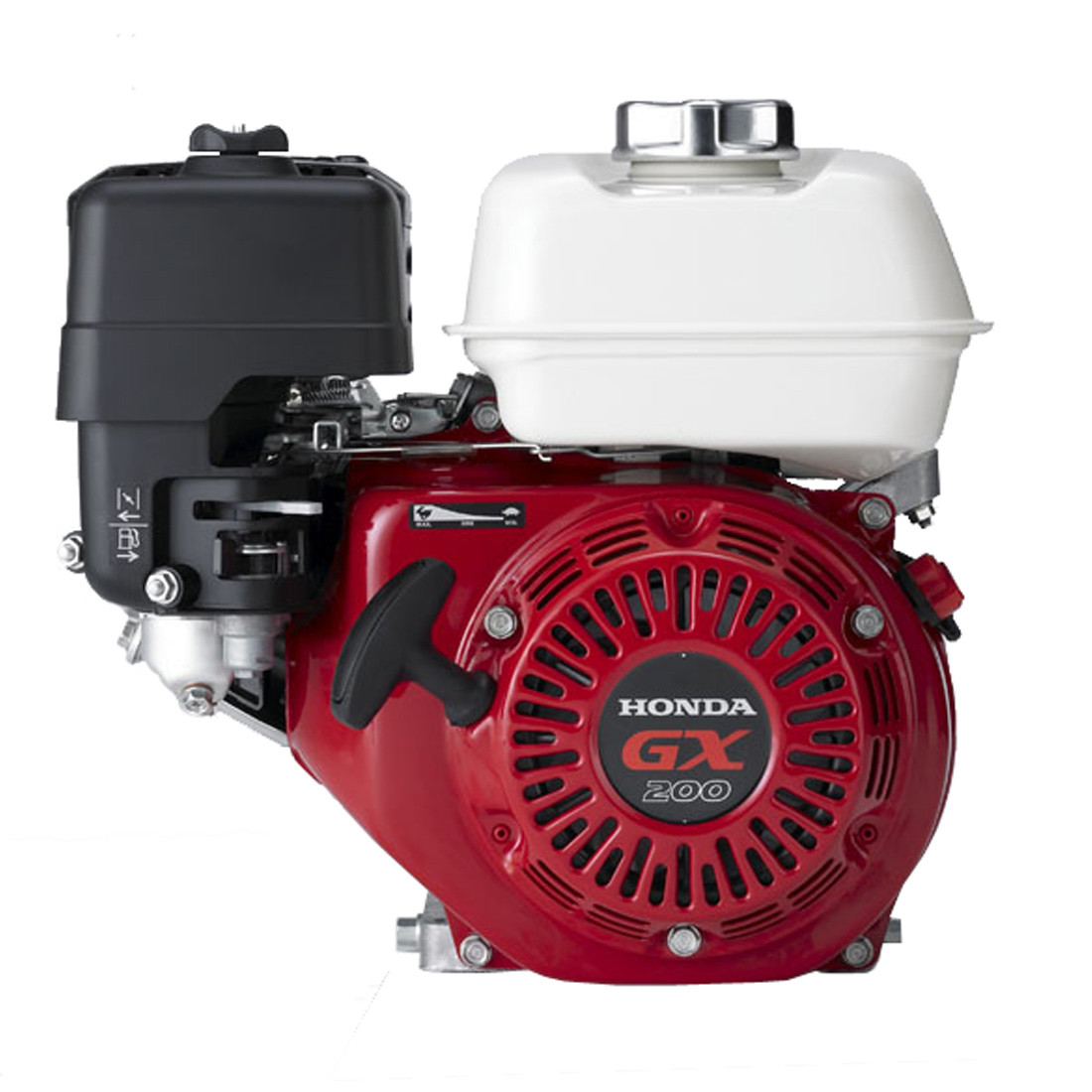

    • Honda GX200
    • Honda GX200- right side view
    • Honda GX200- rear view
    • Honda GX200- left side view
    • Honda GX200- Simpson WaterBlaster Pressure Washer
    • Honda GX200- Mi-T-M 8 Gallon Air Compressor Generator
    • Honda GX200- Mi-T-M Cold Water Pressure Washer CD Series
    • Honda GX200- Multiple charging coil options
    • Honda GX200- GX series engines offer premium features and quality
    • Honda GX200- Precision camshaft design
    • Honda GX200- Superior air filtration systems
    • Honda GX200- Ball bearing supported crankshaft
    • Honda GX200- Dual oil drains and fill
    • Honda GX200- Automatic mechanical decompression for easier starting
    Price:
    $358.07
    SKU:
    GX200UTQX2
    Brand:
    Weight:
    29.00 LBS
    Shipping:
    Calculated at checkout


    Product Description

    Completely redesigned for 2011, the new GX200 offers lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance. And the new GX200 essentially matches the dimensions of the previous model, so no modifications to existing equipment designs are necessary.

    Common Applications

    • Pressure washers
    • Commercial lawn and garden equipment
    • Tillers / cultivators
    • Generators
    • Construction / industrial equipment
    • Agricultural equipment
    • Small vehicles
    • Water pumps

    Fuel Efficient, High Output Operation

    • Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
    • OHV design for increased efficiency and optimal power transfer
    • High compression ratio for better fuel efficiency

    Smooth Performance

    • Precision engineered components result in lower vibration
    • Ball bearing supported crankshaft for greater stability


    Exceptionally Quiet

    • Large capacity, multi-chamber exhaust system
    • Reduced mechanical noise due to light weight, noise-reducing materials
    • Forged steel crankshaft and rigid crankcase
    • Helical cut gears
    • Sophisticated air intake system

    Proven Reliability

    • Oil Alert
    • New carburetor chamber coating and carburetor filter help to protect against fuel impurities
    • Cast iron cylinder sleeve
    • High quality materials, fit, and finish
    • Dual element air cleaner
    • Fuel Valve
    • 3-Year Limited Warranty

    Easy to Use and Maintain

    • Simple throttle control
    • Large fuel tanks
    • Large automotive type fuel cap
    • Dual oil drains and fill
    • Easy, convenient, heavy duty control box
    • Easily accessible spark plug

    Easy Starting

    • Heavy duty recoil starter
    • Ergonomic, easy to grip recoil rope design
    • Automatic mechanical de-compression system

    Emissions Compliant

    • Lower emissions, same power output!
    • CARB and EPA certified
    • No catalyst necessary

    Available Options

    • Low profile versions
    • Gear reduction options
    • Electic start
    • Spark arrester available
    • Charge and lamp coils with multiple output options available
    • Cyclone Air Cleaner available

    Specifications

    • Dia. Taped 5/16 24 UNF

    Engine Type

    Air-cooled 4-stroke OHV

    Bore x Stroke

    68 X 54 mm

    Displacement

    196 cm3

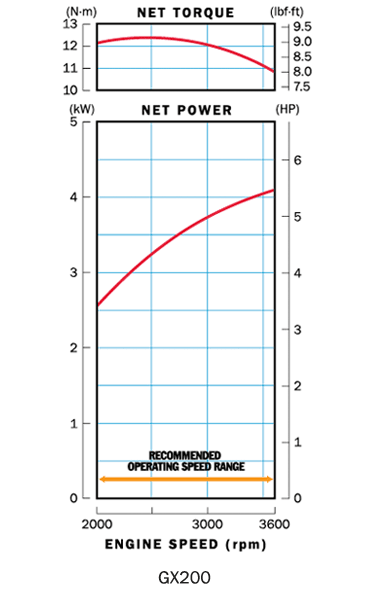

    Net Power Output*

    5.5 HP (4.1 kW) @ 3,600 rpm

    Net Torque

    9.1 lb-ft (12.4 Nm) @ 2,500 rpm

    PTO Shaft Rotation

    Counterclockwise (from PTO shaft side)

    Compression Ratio

    8.5:1

    Lamp/Charge coil options

    25W, 50W / 1A, 3A, 7A

    Carburetor

    Butterfly

    Ignition System

    Transistorized magneto

    Starting System

    Recoil Starter

    Lubrication System

    Splash

    Governor System

    Mechanical

    Air cleaner

    Dual element

    Oil Capacity

    0.63 US qt (0.6l)

    Fuel Tank Capacity

    3.3 U.S. qts (3.1 liters)

    Fuel

    Unleaded 86 octane or higher

    Dry Weight

    35 lbs. (16.1 kg)

    Dimensions

    Length (min)

    12.6" (321mm)

    Width (min)

    14.8" (376mm)

    Height (min)

    13.6” (346 mm)

    PTO Shaft Options

    H type

    Reduction type PTO

    L type

    Reduction type PTO

    Q type

    Straight shaft

    R type

    Reduction type PTO

    T type

    Straight shaft

    V type

    Tapered shaft

    *The SAE J1349 standard measures net horsepower with the manufacturer’s production muffler and air cleaner in place. Net horsepower more closely correlates with the power the operator will experience when using a Honda engine powered product. The power rating of the engines indicated in this document measures the net power output at 3600 rpm (7000 rpm for model GXH50, GXV50, GX25 and GX35) and net torque at 2500 rpm, as tested on a production engine. Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operation speed of the engine in application, environmental conditions, maintenance and other variables.
